GEONWORKS

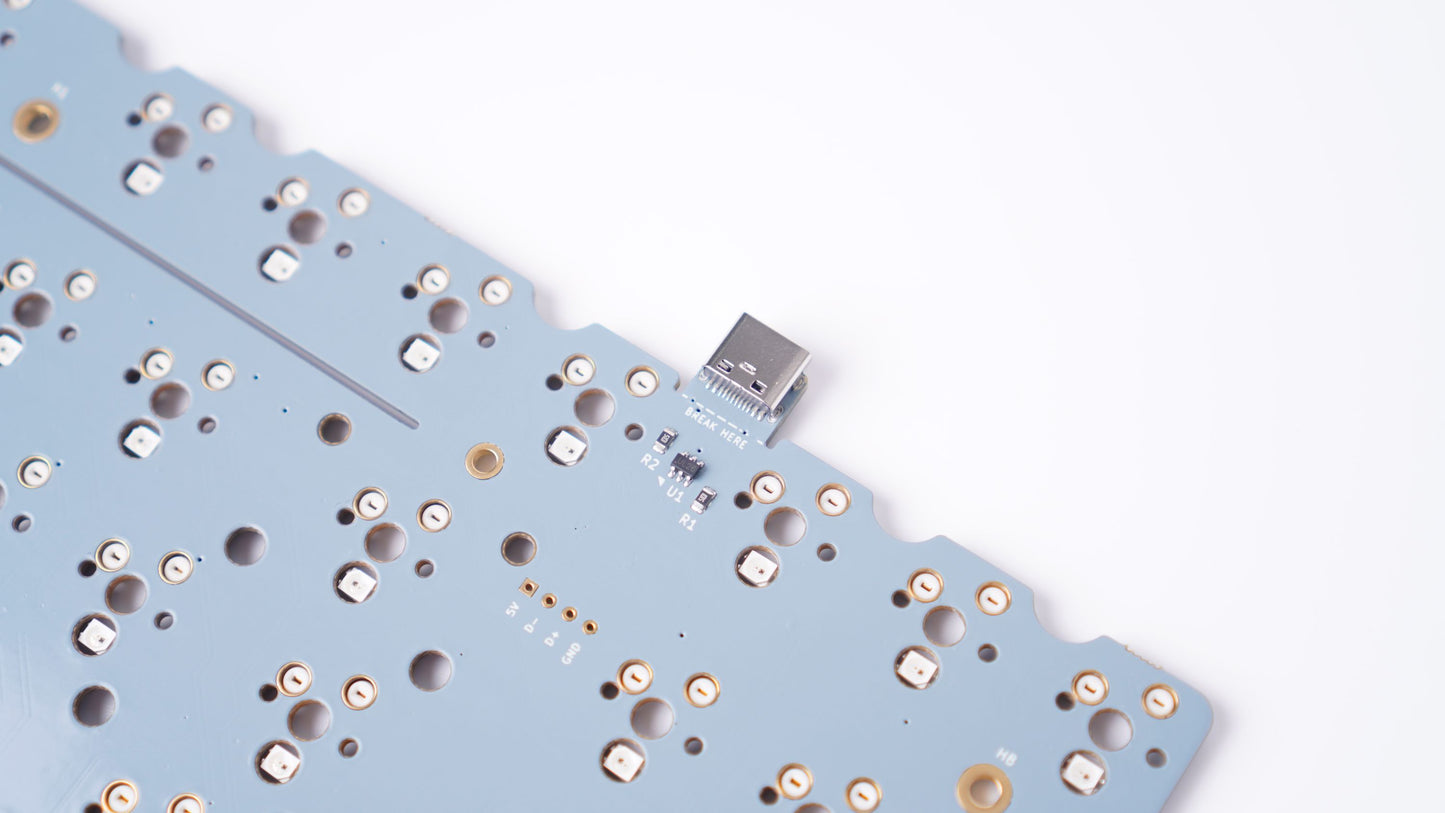

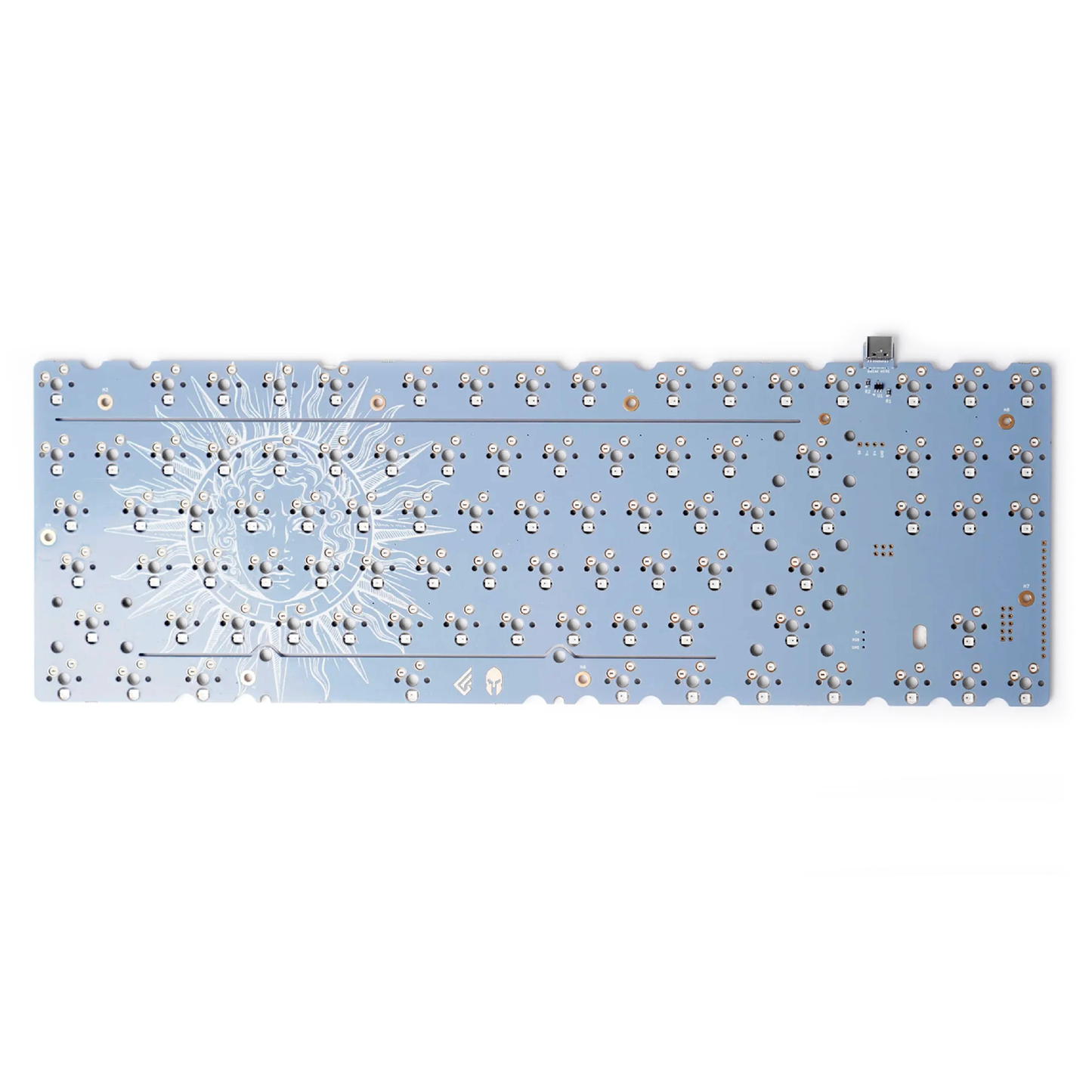

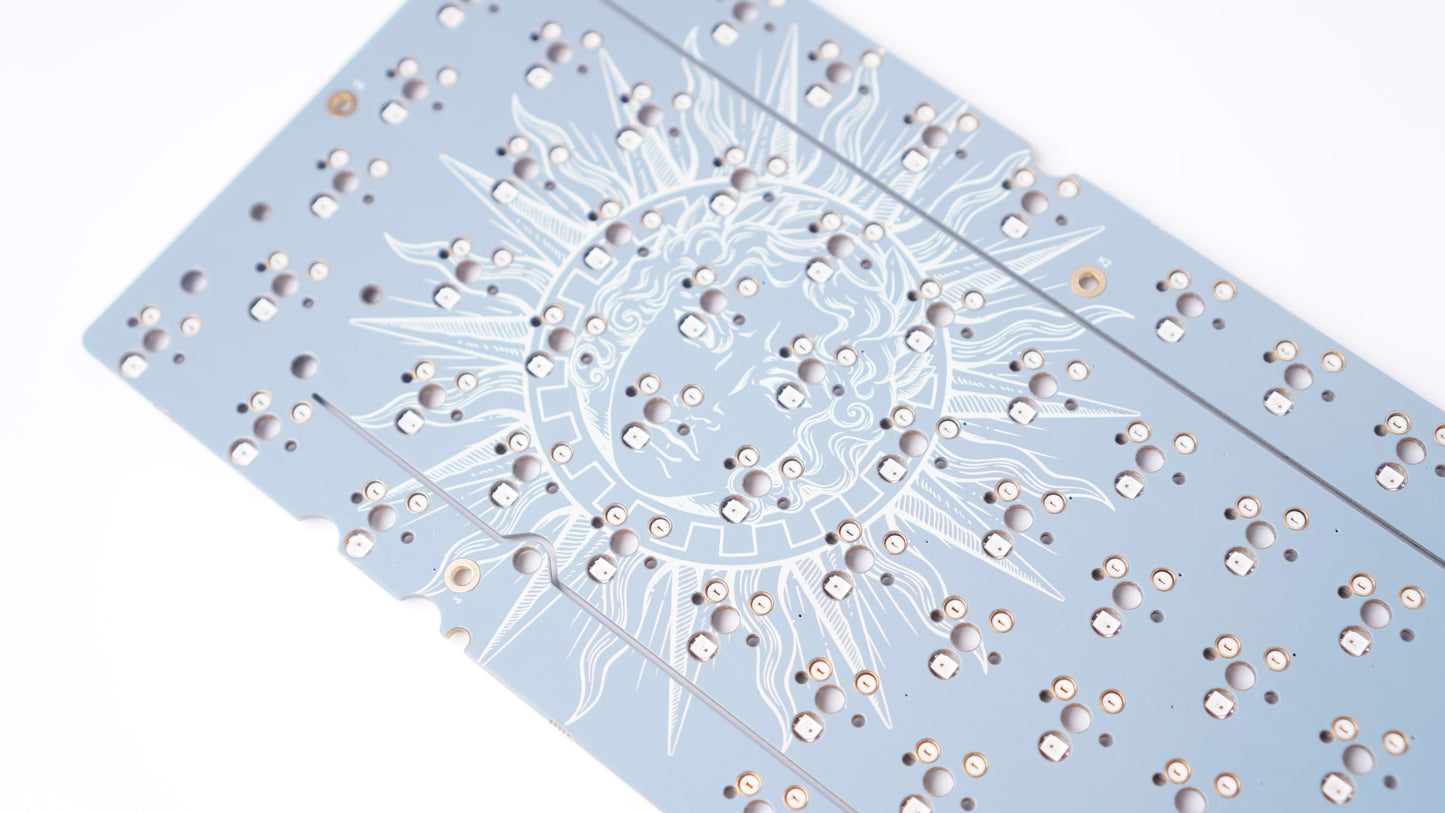

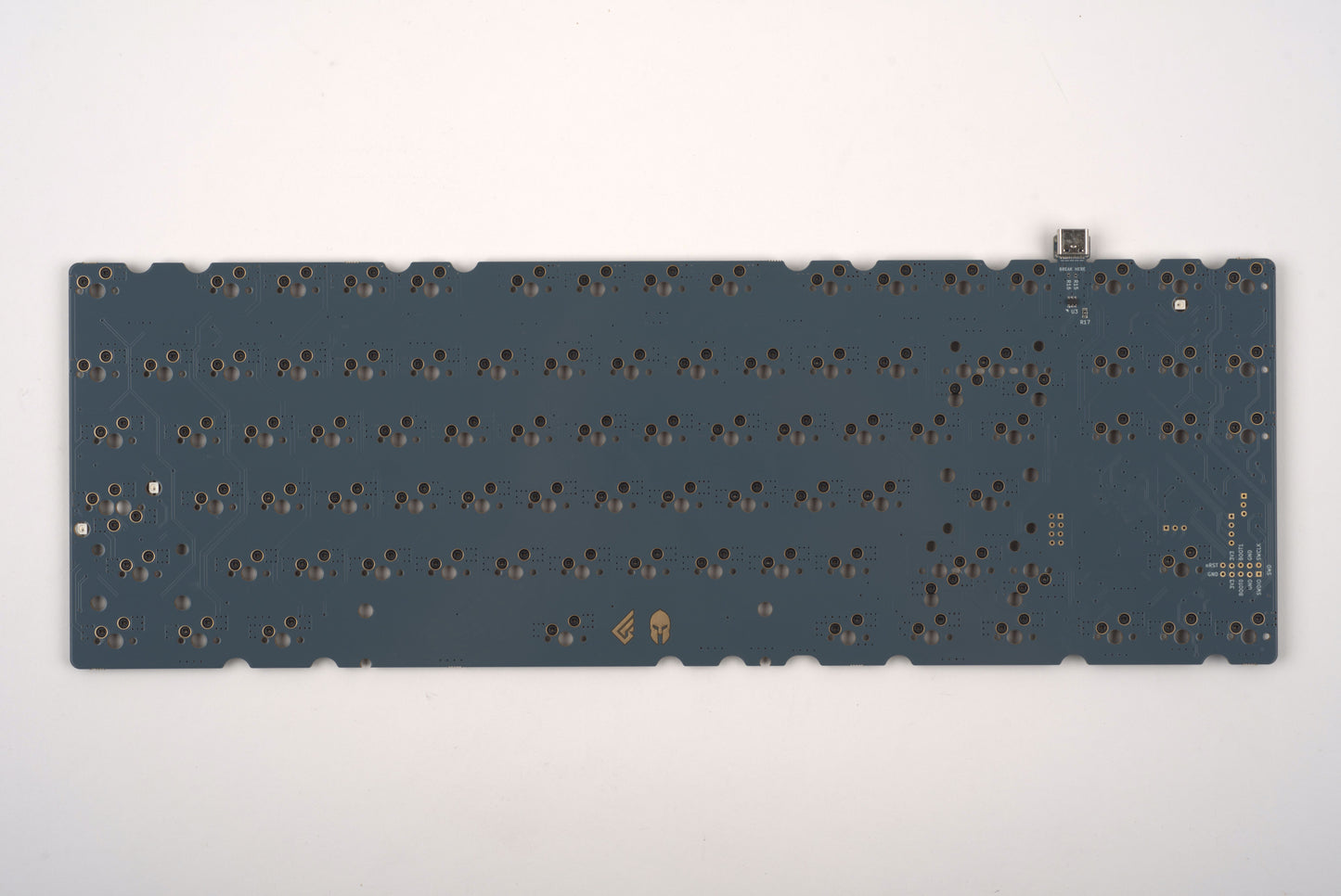

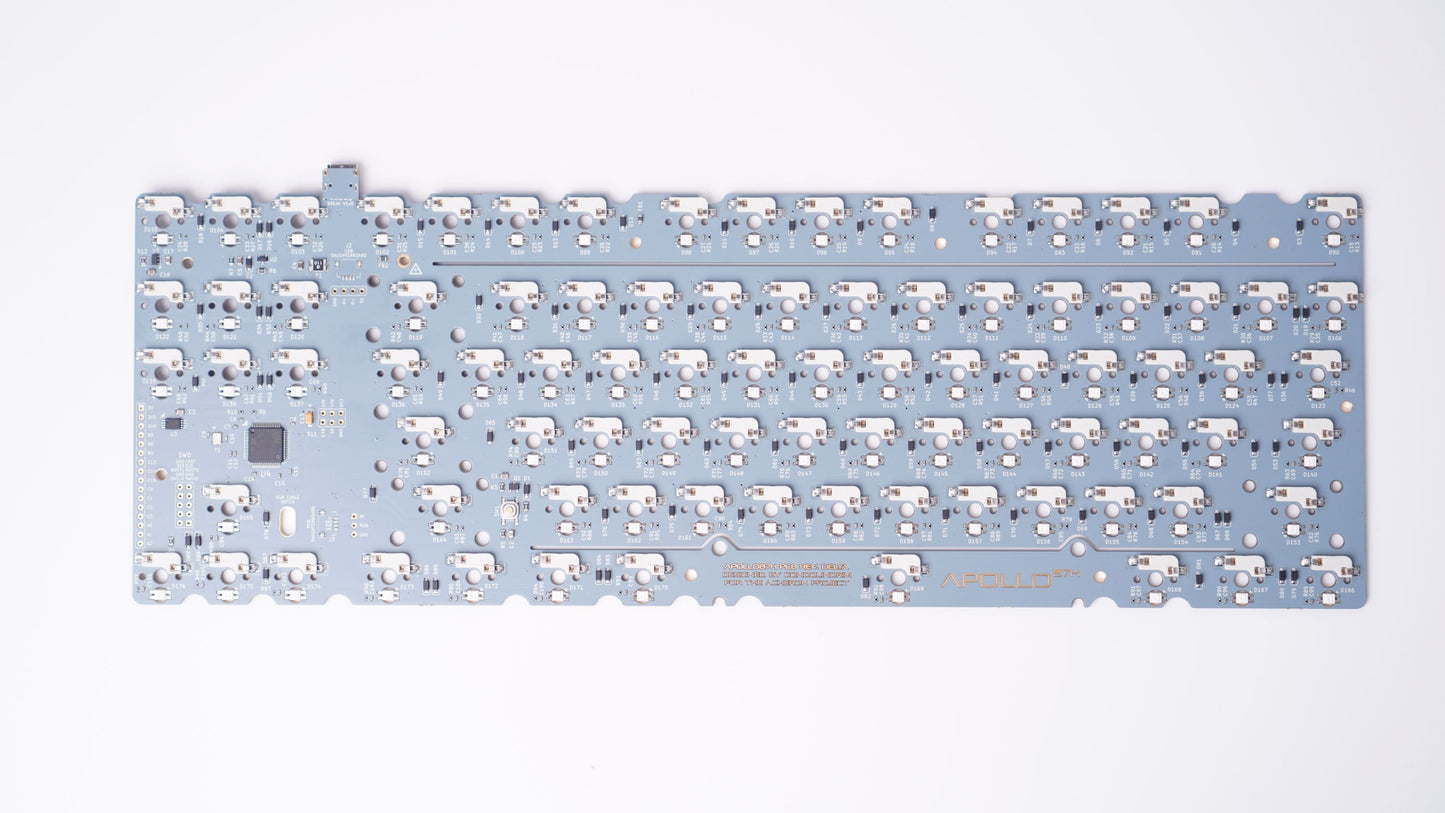

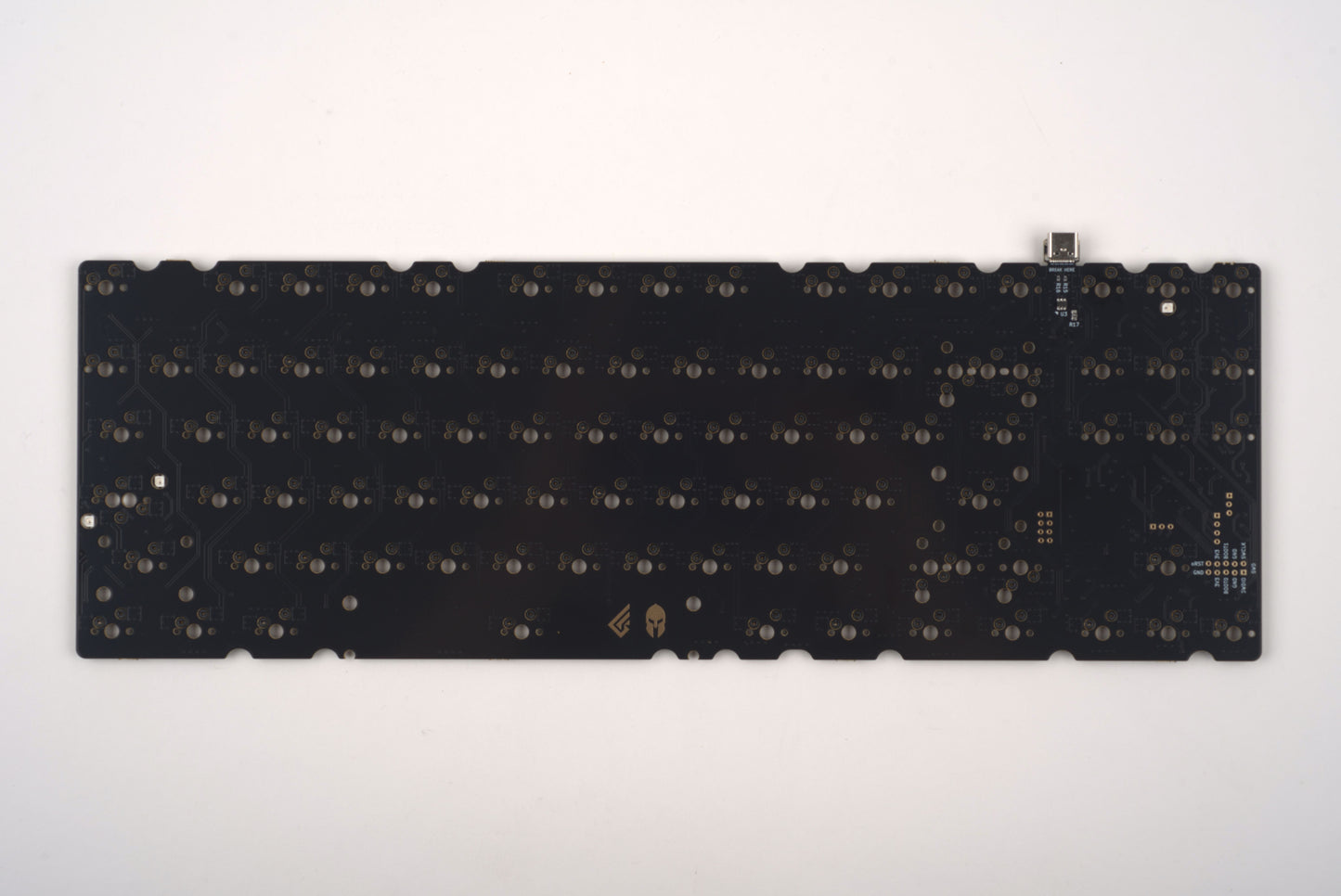

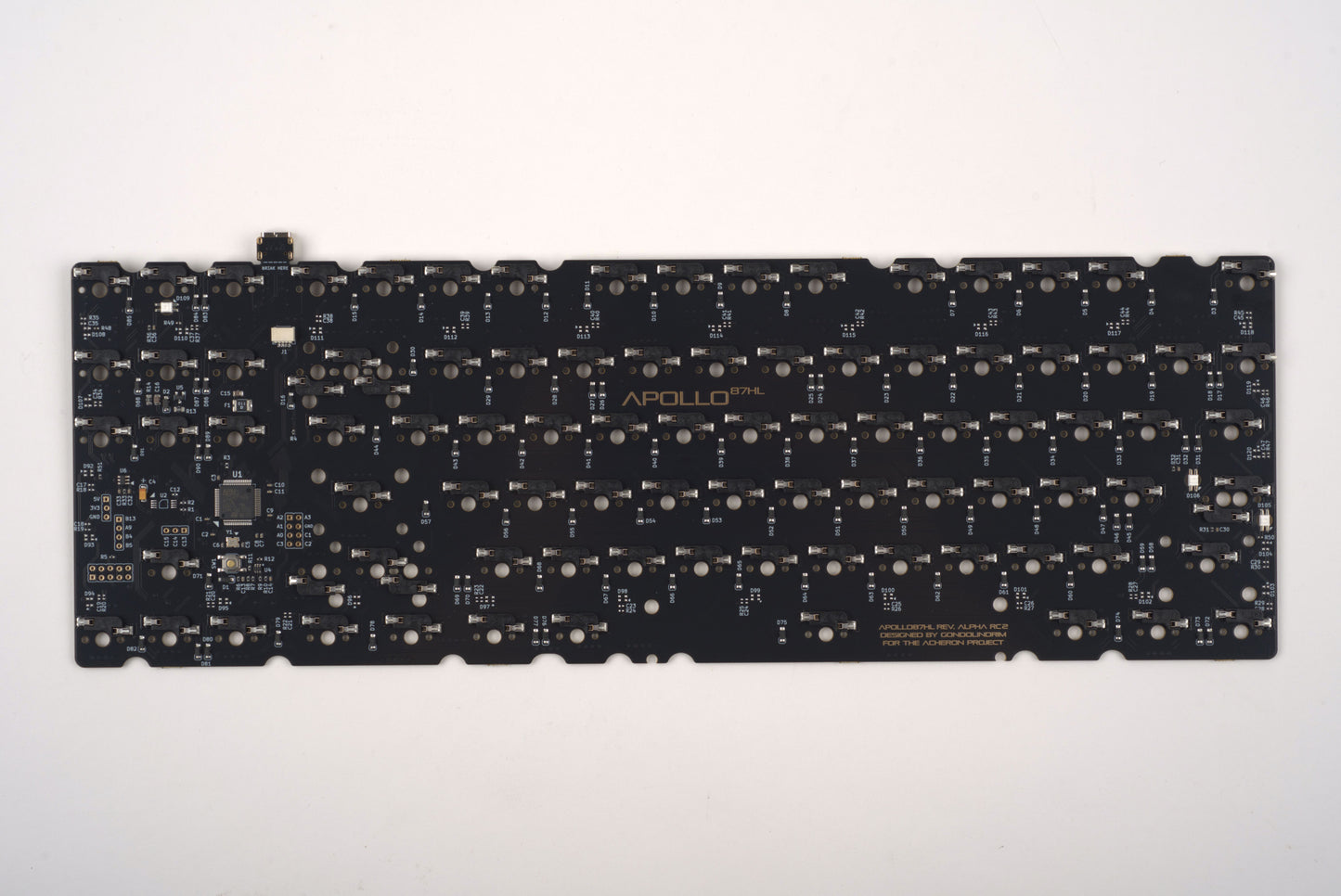

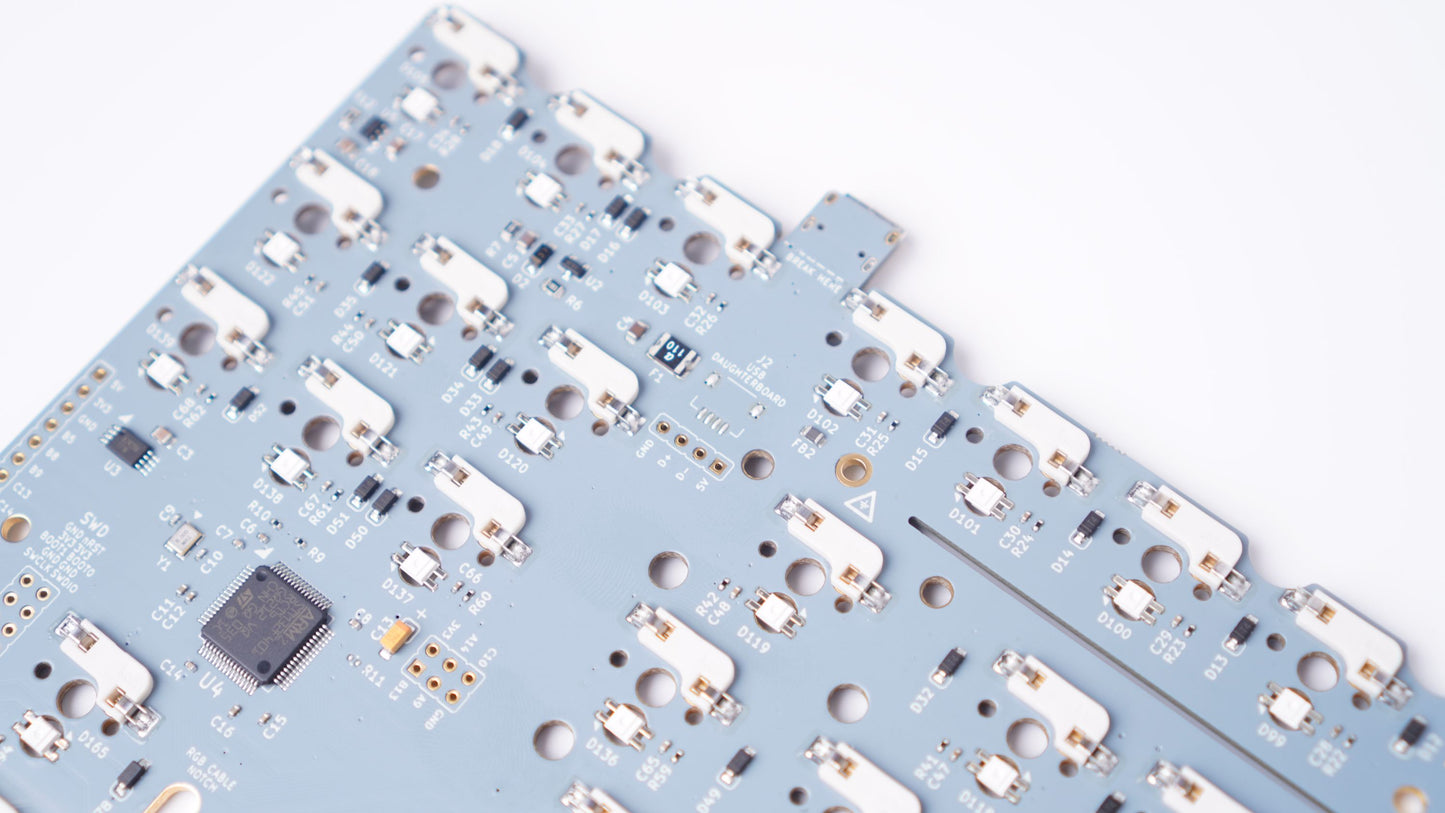

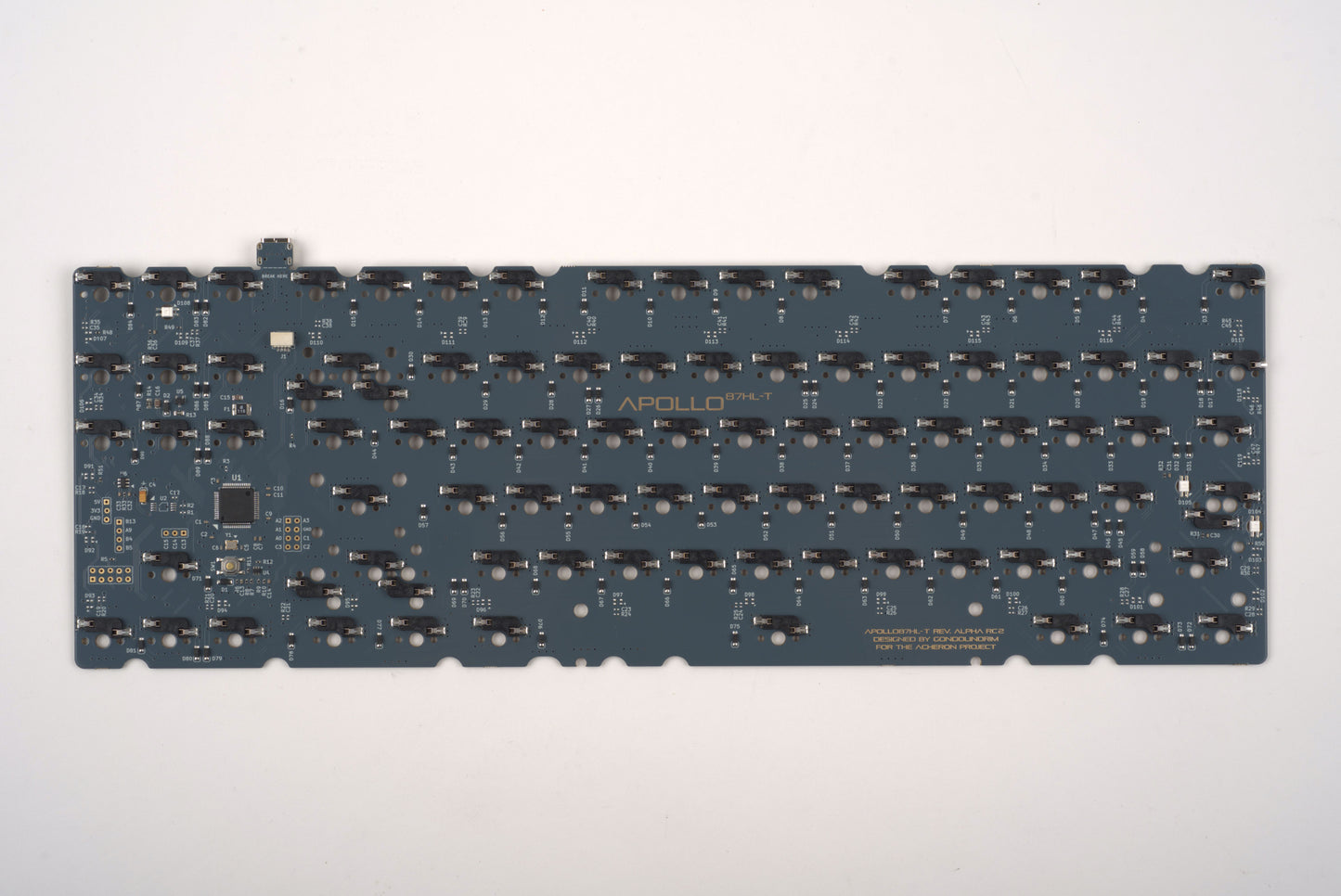

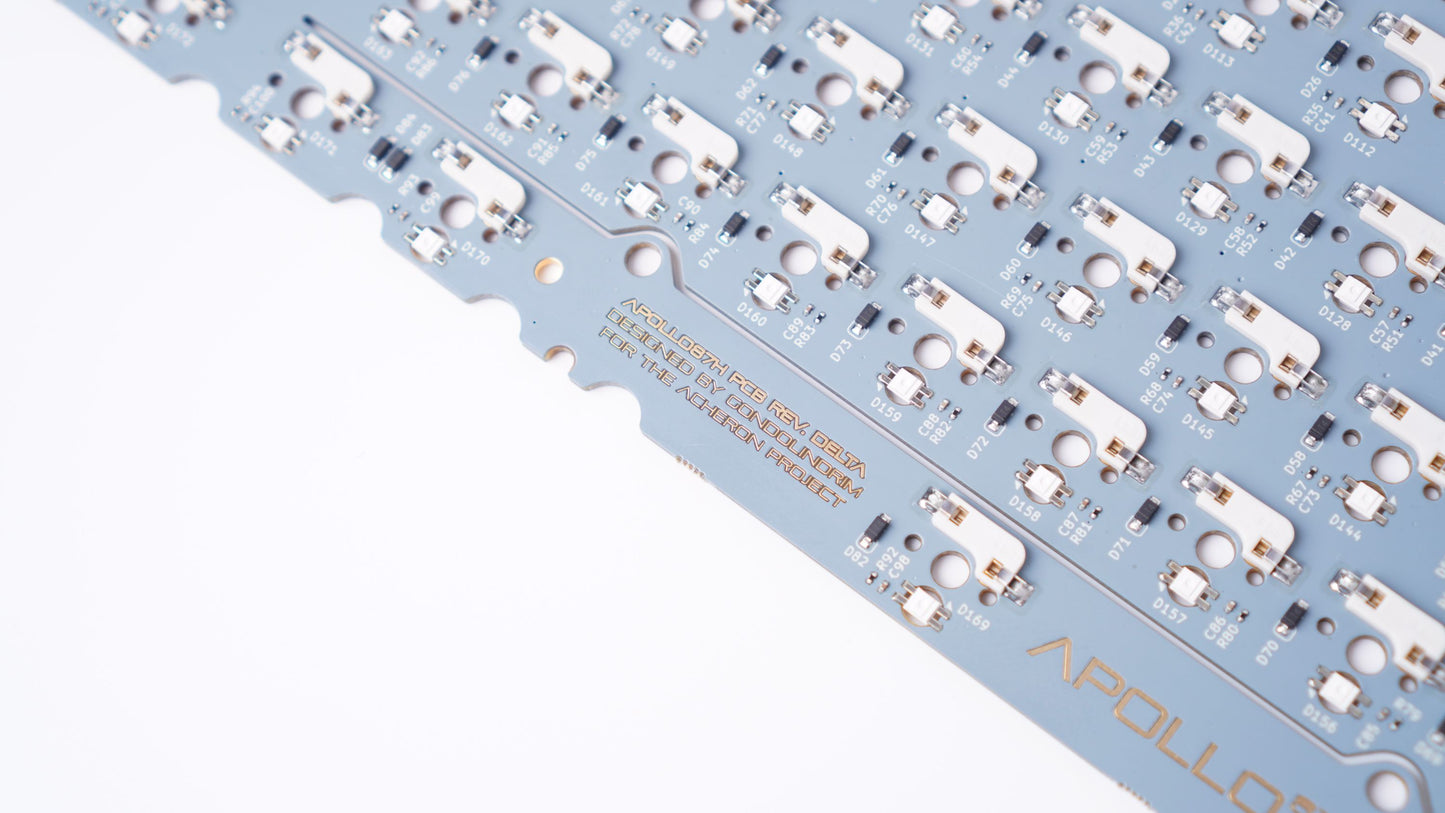

ApolloH Hotswappable PCB
ApolloH Hotswappable PCB
Regular price
$65.00 USD
Regular price
$65.00 USD
Sale price
$65.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
APOLLO TKL PCB x Geonworks
by Gondolindrim
Specifications
by Gondolindrim
Specifications

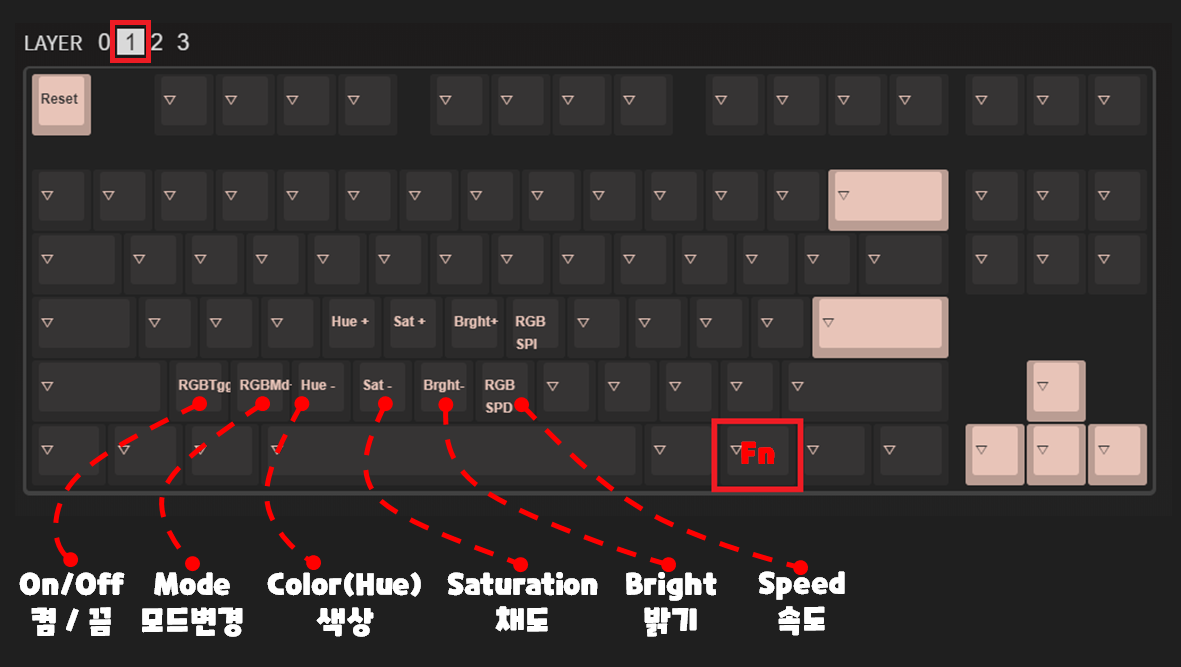

QMK/VIA COMPATIBLE
Material : FR-4

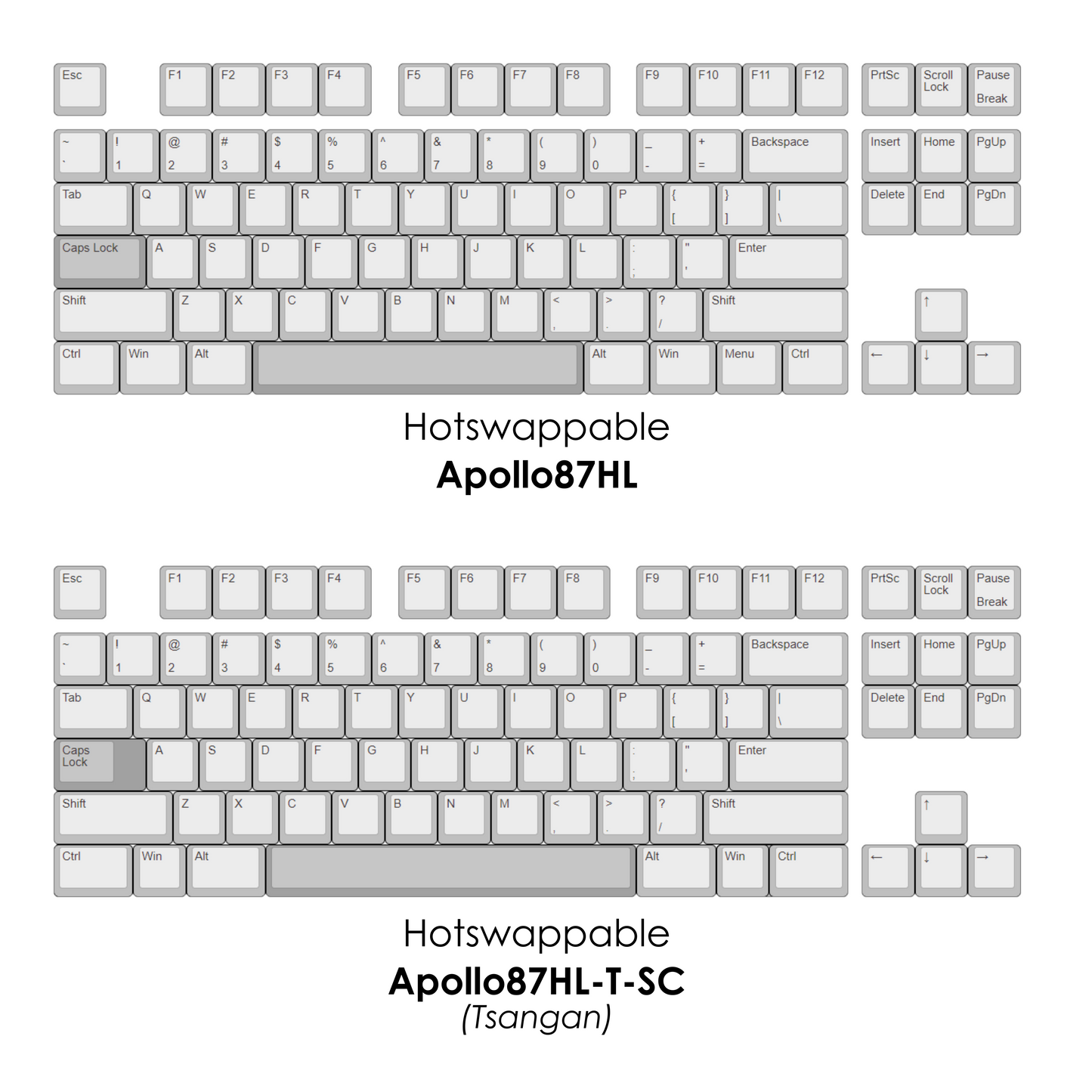

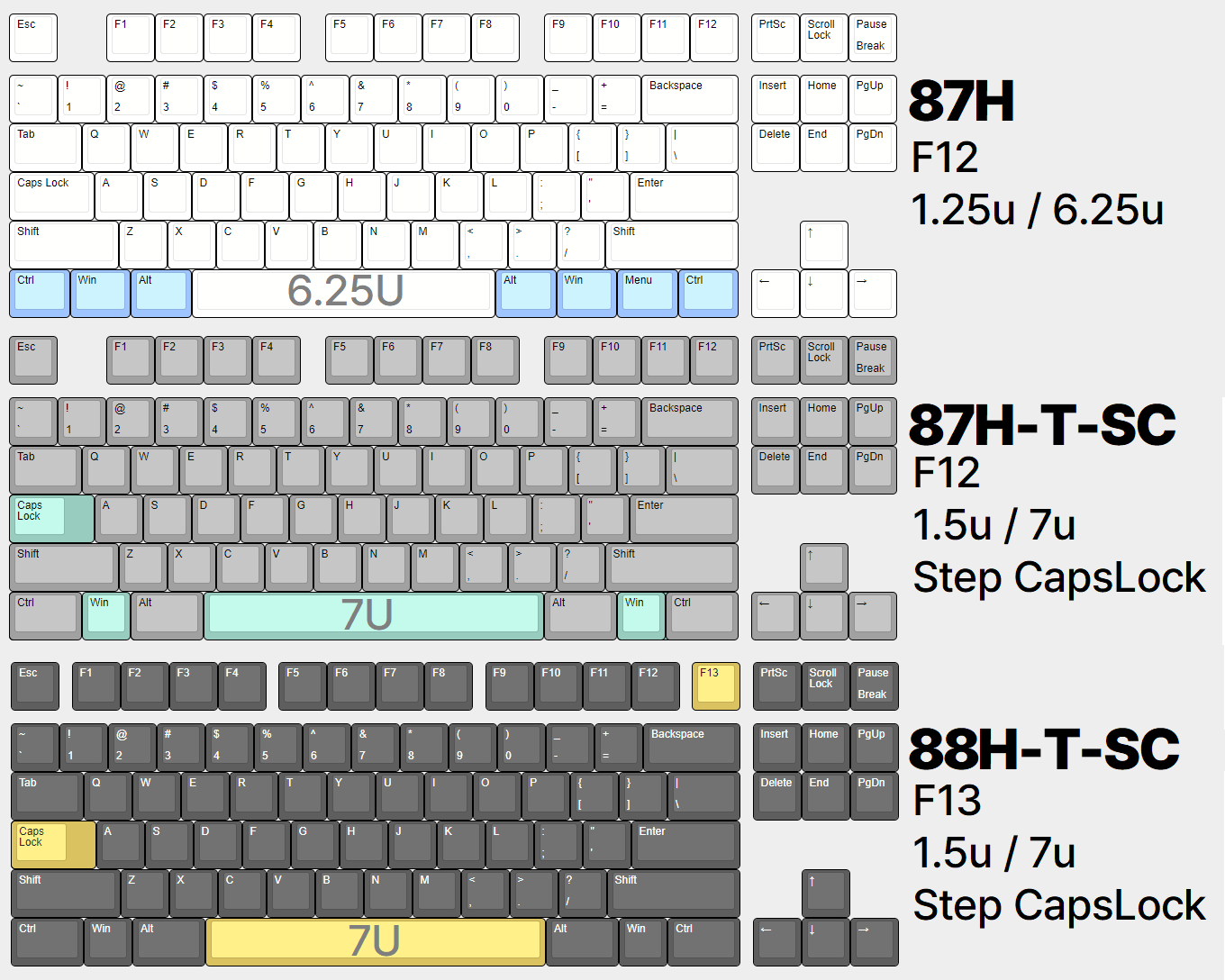

Thickness : 1.6 mmLayout
87H- F12 TKL
87H-T-SC - F12 TKL (TSANGAN)
88H-T-SC - F13 (TSANGAN)
Compatible
87H: F1-8X WK version, FROG TKL F12 WK version
87H-T-SC: F1-8X WK/WKL version, FROG TKL F12 version
88H-T-SC: F1-88 WK/WKL version, FROG TKL F13 version
How to Flashing Firmware
- https://geon.works/pages/qmk-via-flashing-firmware
Compatible
87H: F1-8X WK version, FROG TKL F12 WK version
87H-T-SC: F1-8X WK/WKL version, FROG TKL F12 version
88H-T-SC: F1-88 WK/WKL version, FROG TKL F13 version
How to Flashing Firmware
- https://geon.works/pages/qmk-via-flashing-firmware
When plugging the switch into the hot-swap socket, please ensure the contacts on the switch are properly aligned.
When connecting the switch to the hot-swap PCB, place the socket on the floor (desk mat, etc.) as much as possible before connecting it.
Please note that the hot-swap socket is soldered to a thin copper foil, and the socket may fall off if the switch is screwed in too tightly.
When connecting the switch to the hot-swap PCB, place the socket on the floor (desk mat, etc.) as much as possible before connecting it.
Please note that the hot-swap socket is soldered to a thin copper foil, and the socket may fall off if the switch is screwed in too tightly.
