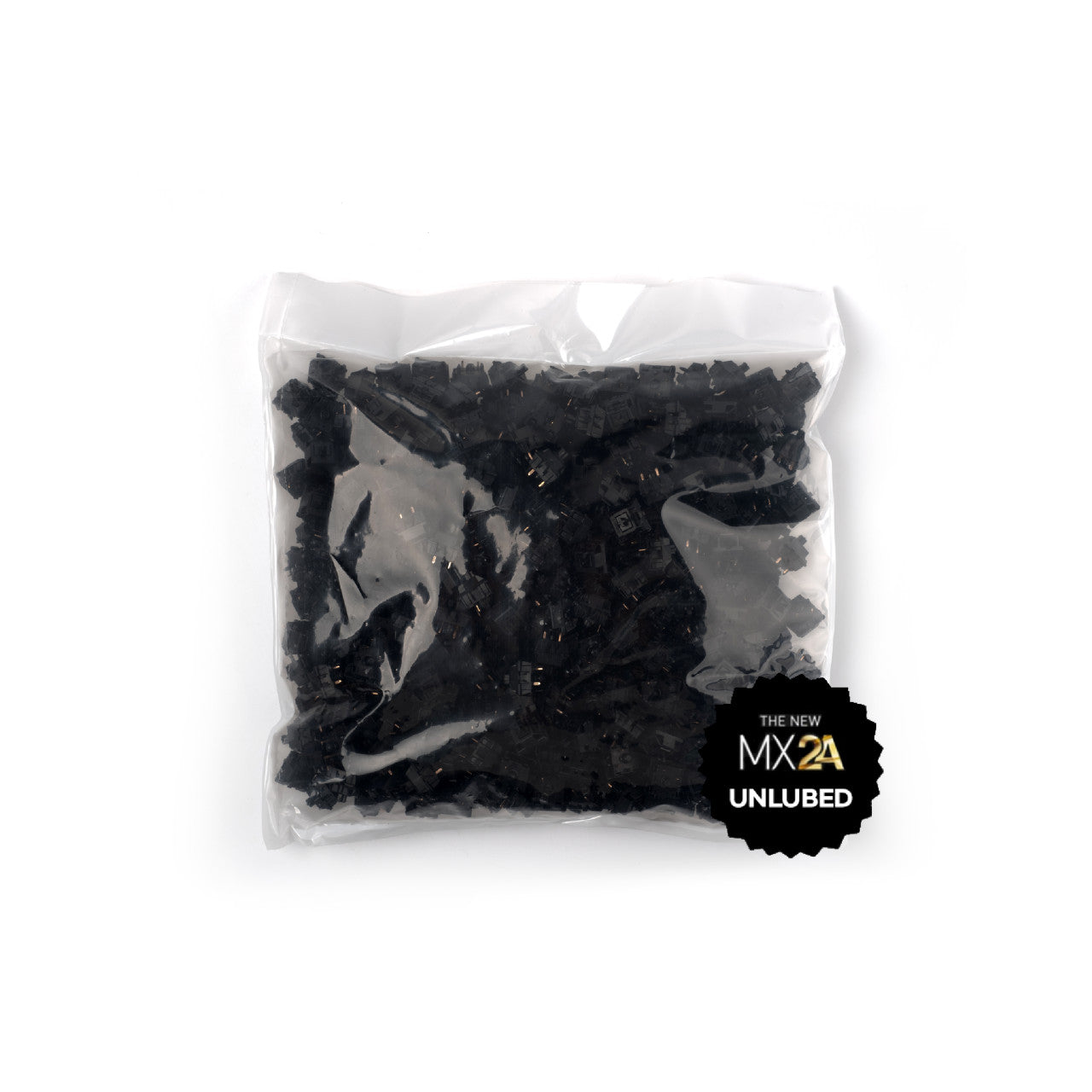

Cherry MX2A-1C6W Unlubed Black
Cherry MX2A-1C6W Unlubed Black
The new generation of gold standard keyboard switches
Original CHERRY MX is the world´s leading precision
technology for mechanical key switches. The CHERRY
Gold Crosspoint contact concept and the unprecedented
production quality "Made in Germany" are unique. The
MX2A series introduces a new level typing experience,
setting a new standard for mechanical key switches.
Key benefits:
• Engineered and Made in Germany
• CHERRY MX2A Black switch: Linear actuation –
switching function with a defined force of approx. 60 cN
without contact feedback
• Industry-leading CHERRY Gold Crosspoint technology
• Non-lubricant, Special order from Geonworks
• Noise-reducing barrel spring design
• Unique, spring-centering stem
• Diamond polished stem and spring guidance
• Glide-optimized stem guidance ribs
• Short bounce time for high switching frequency
(such as for fast typing)
• Self-cleaning contacts
• Switch resistant to dust and dirt
• Over 100 million keystrokes with no loss of quality
guaranteed
Technical Data:
• Switch Type: MX Mechanical Switch
• Mechanical Fastening: see table “Models”
• Connection type: Soldered or hot-swappable
• Protection class: IP40
• Operation characteristics: Linear, heavy
• Switching voltage: 5V
• Durability: > 100 million actuations
• Contact configuration: Single-pole contact

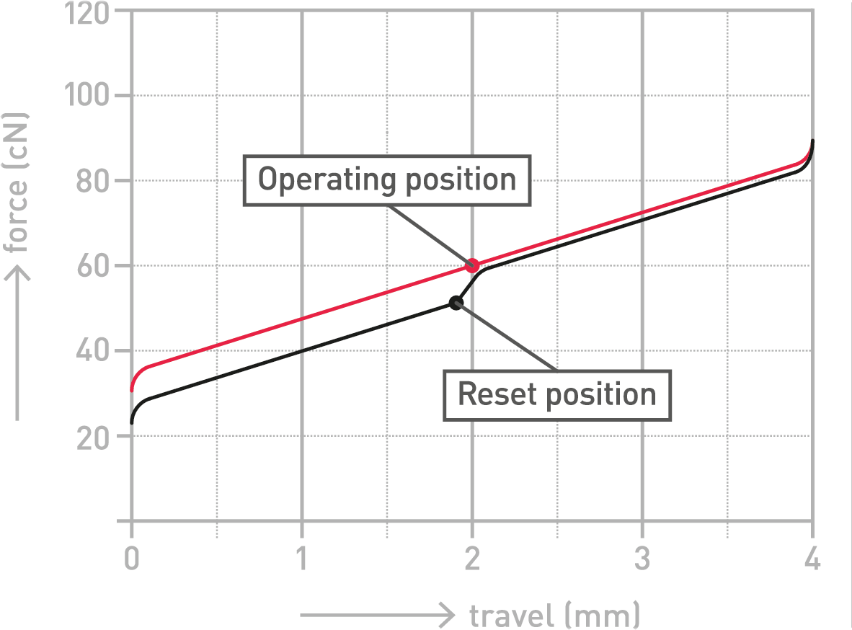

• Actuator travel: 4mm
• Pretravel: 2mm
• Initial force: 30cN
• Actuation force: 60cN
• Bounce time: typ. <1ms
• Lighting: Prepared for use with 2-Pin
LED (THT, through hole)
• Spring: Stainless steel
• Contacts: High-quality gold alloy
