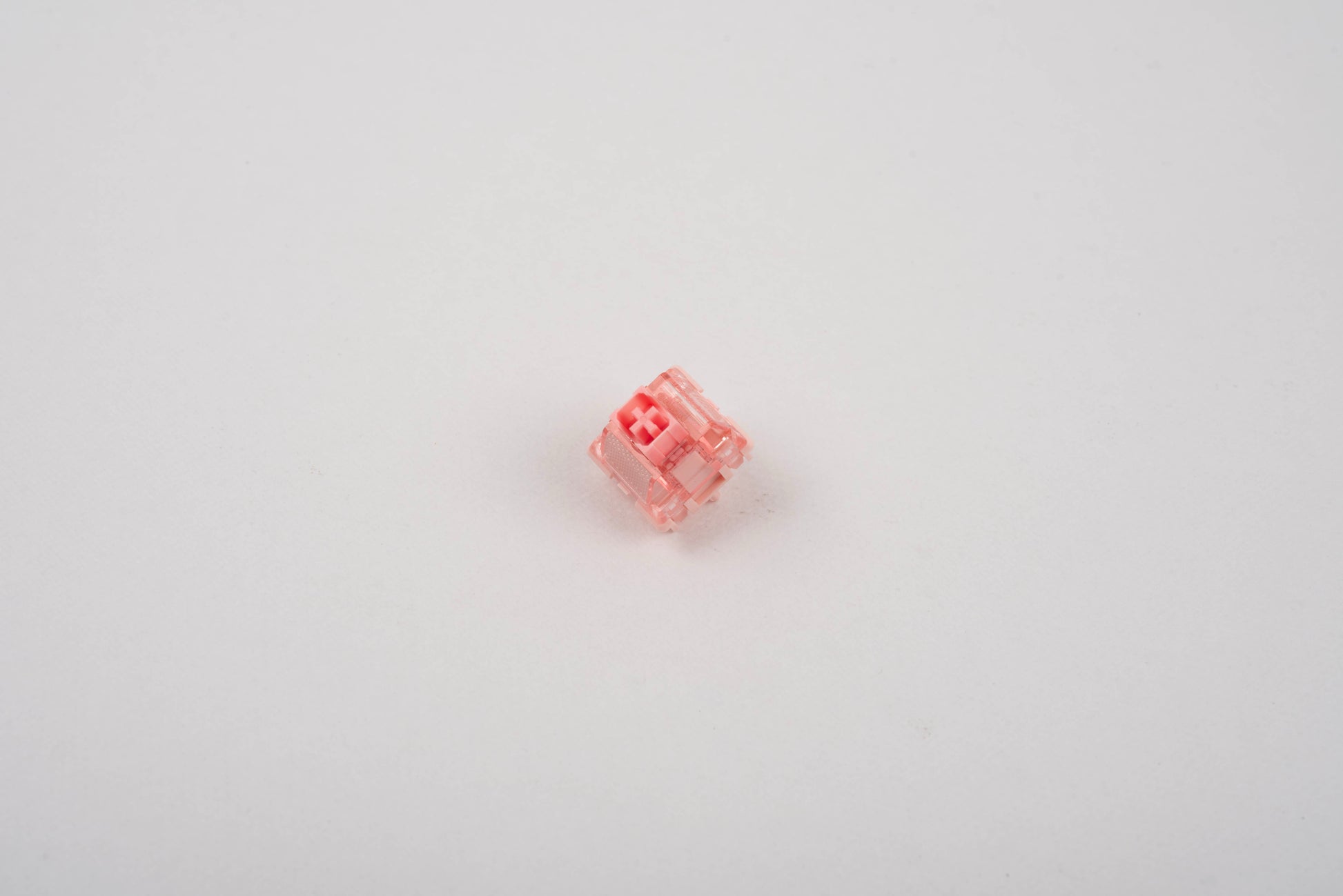

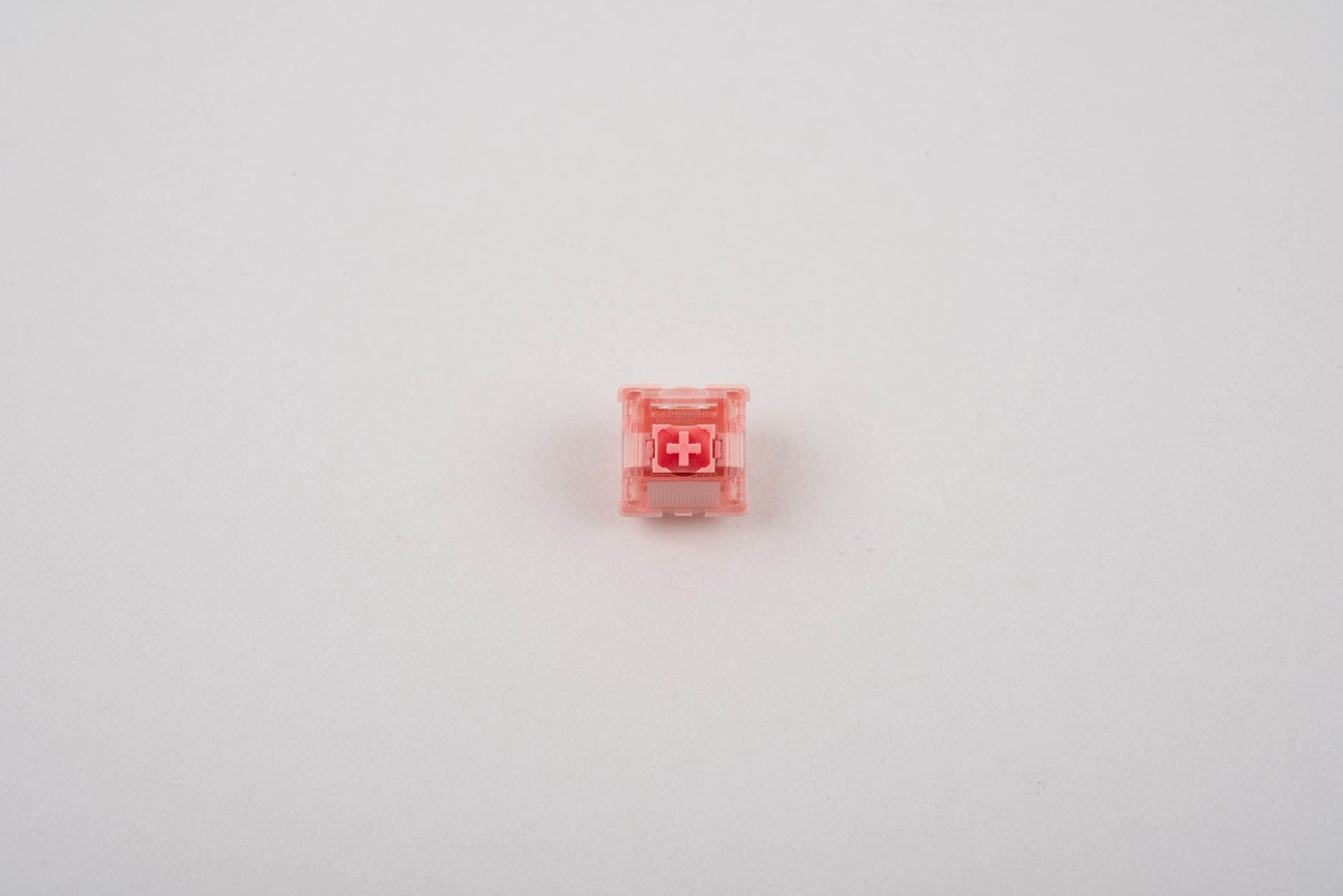

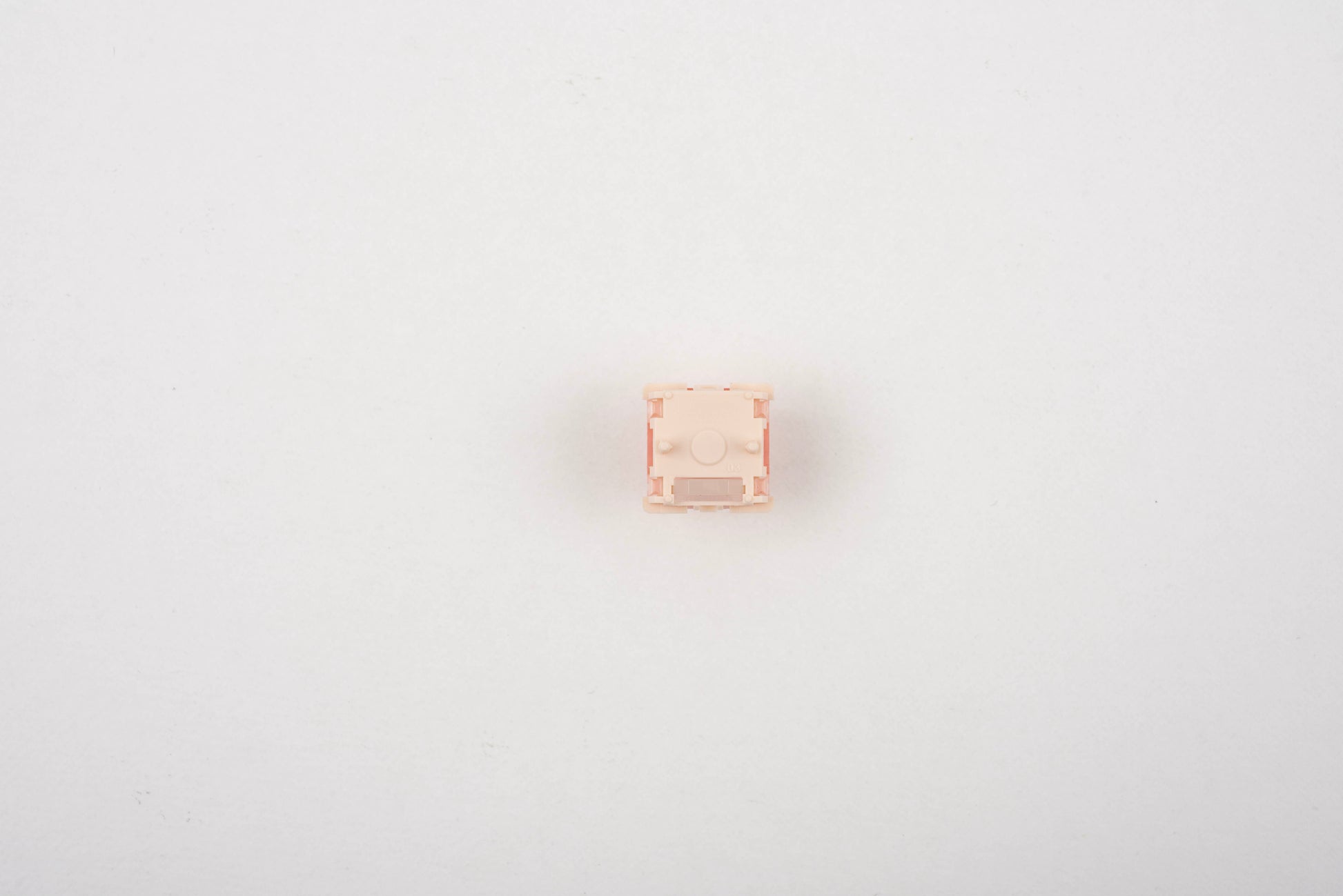

NDIY Freya Silent HE Switch

This is only compatible with some keyboards that support the Hall Effect.

Not compatible with Cherry MX.

Keyboards without calibration will require re-adjustment of the trigger position as the input position may be slightly different.

Fully compatible with GEONWORKS VENOM HE PCB.

NDIY Freya Silent HE Switch 2pins

Switch Type: Linear, Hall Effect
Full Travel: 3.80 ± 0.1 mm
Initial Force:  25 gf
Maximum Force: 45 gf
Mechanical Life: 100 million cycles
Spring: L = 18 mm
Factory Lube: Lubed
Top Housing Material: PC
Bottom Housing Material: PA
Stem Material: POM

Note

This is the first silent HE switch released by GEONWORKS.
After updating your PCB to the latest version via VENOM.HOW, please set the switch to Freya Silent HE.

Manufacturing country

Made in China
