This is only compatible with some keyboards that support the Hall Effect.
Not compatible with Cherry MX.
Confirmed compatible keyboards are : Wooting 60HE, Corsair K70 MAX, and SteelSeries APEX PRO (Non-RGB)
Keyboards without calibration will require re-adjustment of the trigger position as the input position may be slightly different.

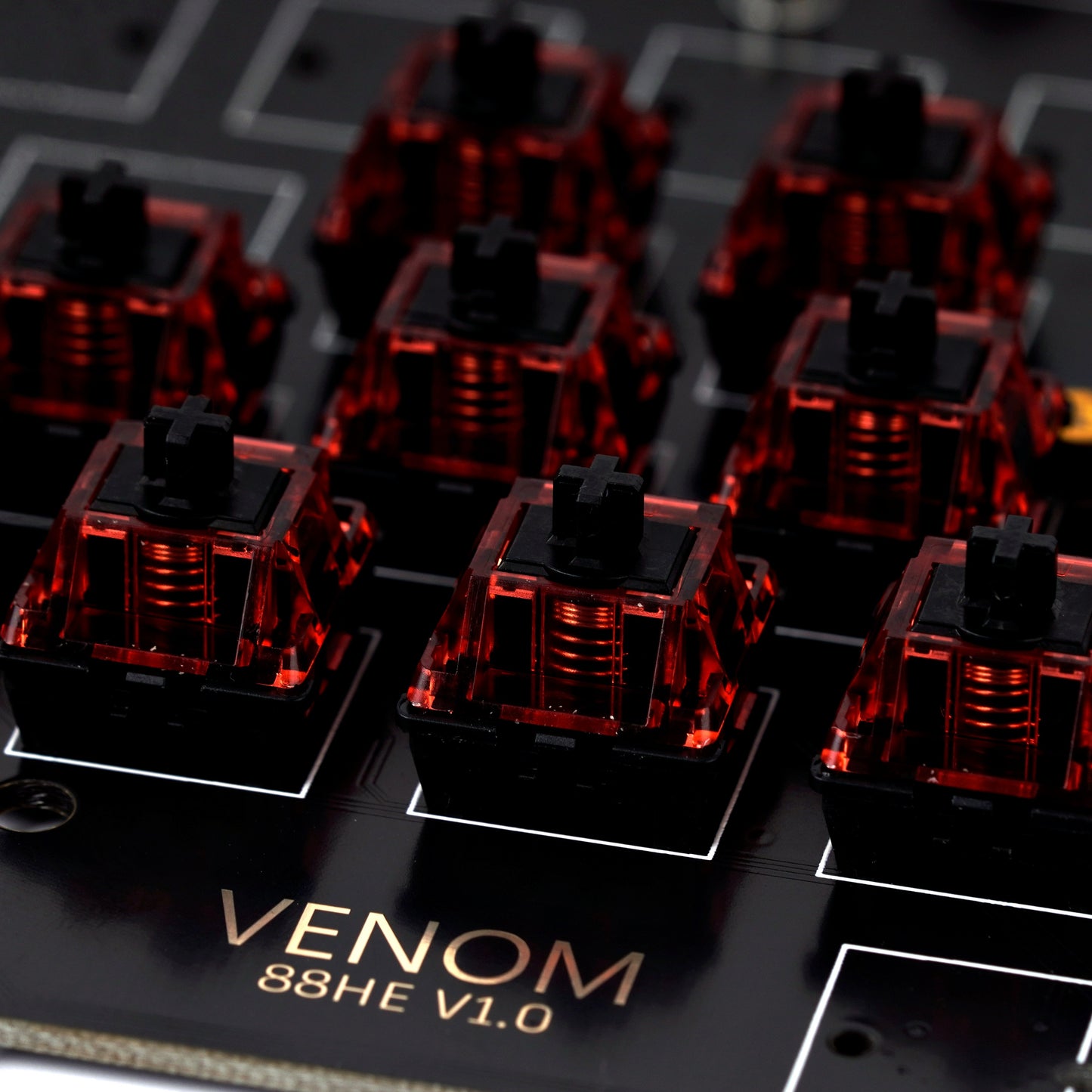

Fully compatible with GEONWORKS VENOM HE PCB.

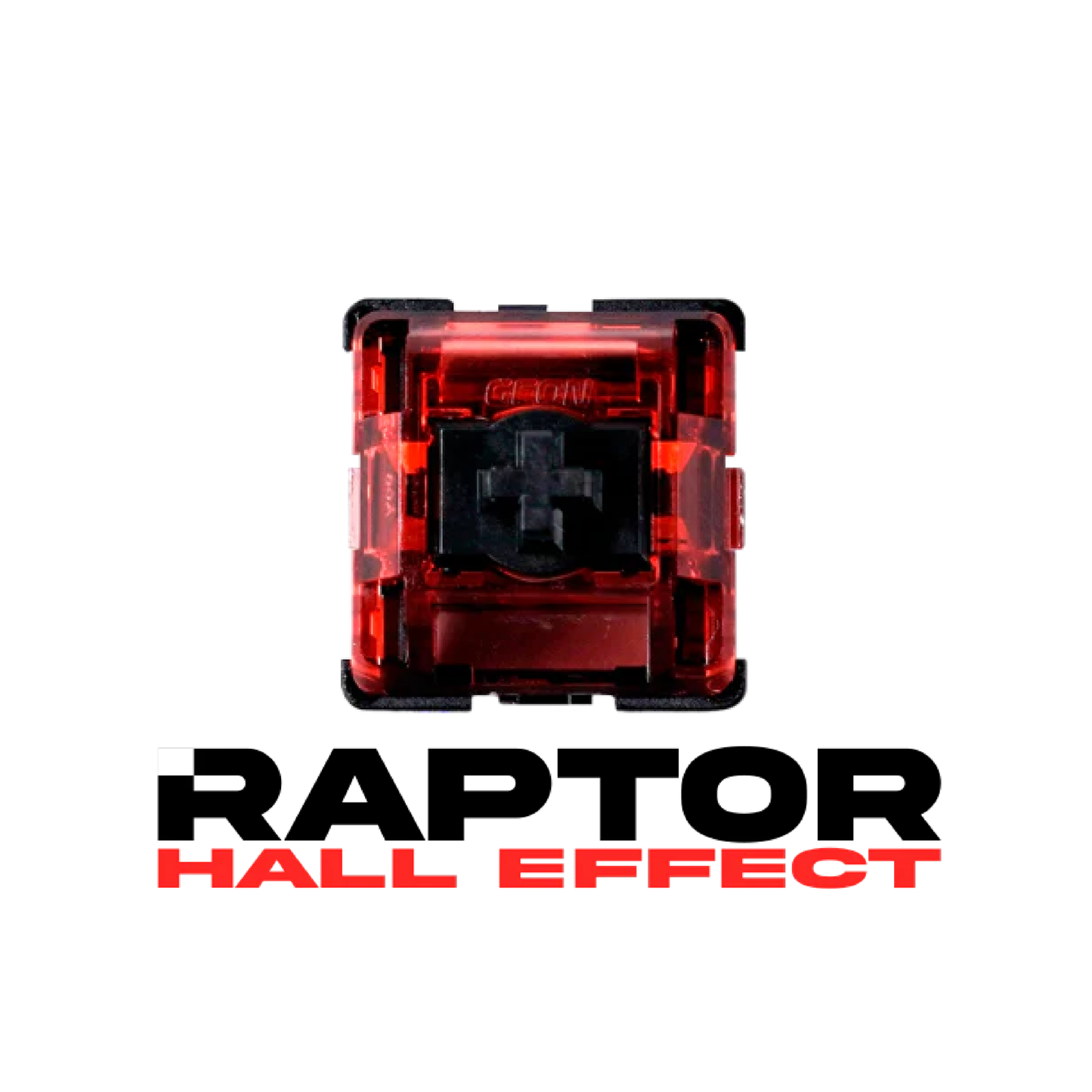

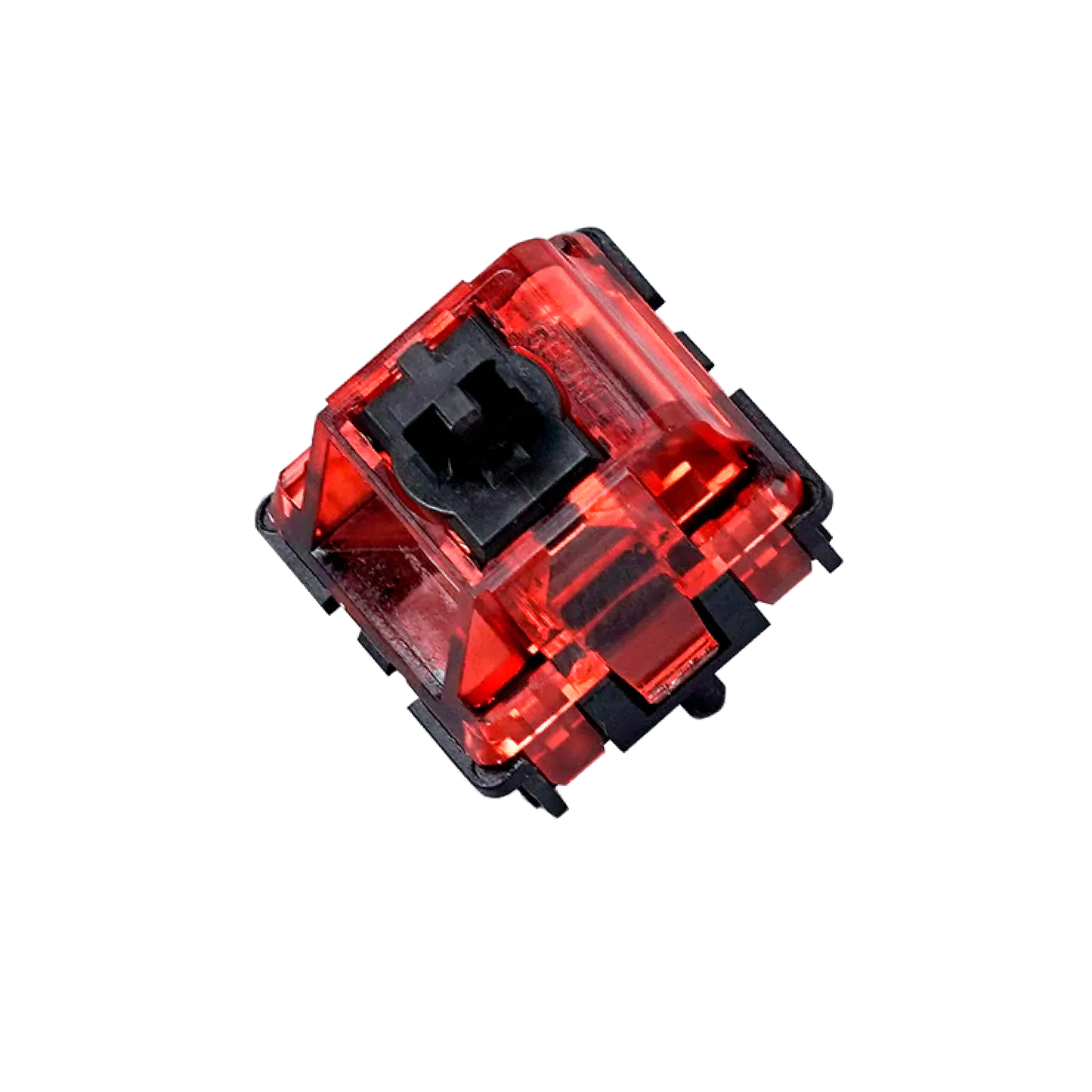

RAPTOR HE Switch 5pins

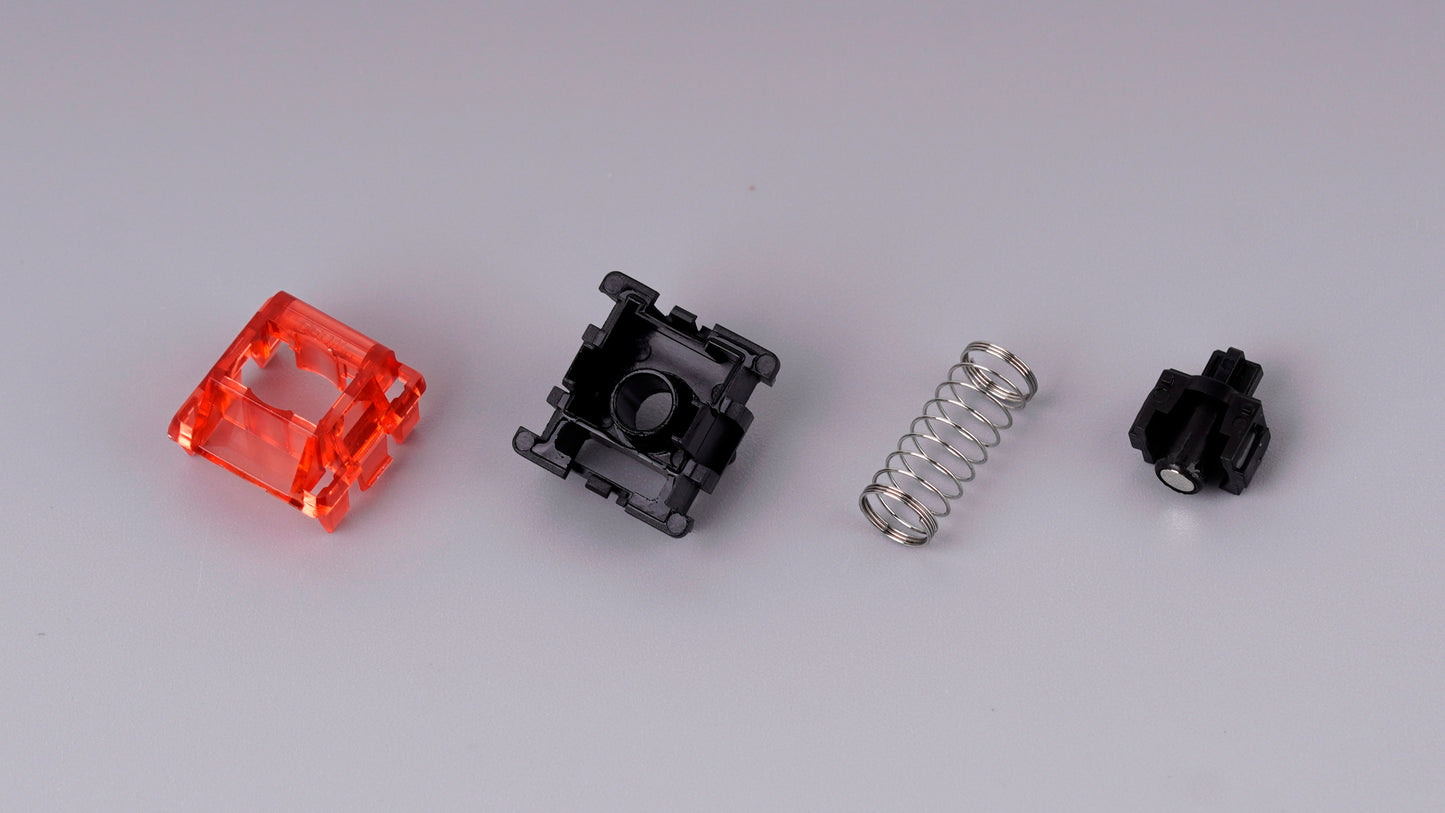

Switch Type - Linear, Hall Effect Operating Force - 42.0g Bottom-out Force - 52.0g Spring Length - 16.0mm, NAS wire Spring Type - Single-Stage Pre Travel - Analog Top Housing Material - PA12 NYLON Bottom Housing Material - PA66 NYLON Stem Material - POM Full Travel - 4.0mm Mounting pins - 2pins Factory Lube - Lubed
