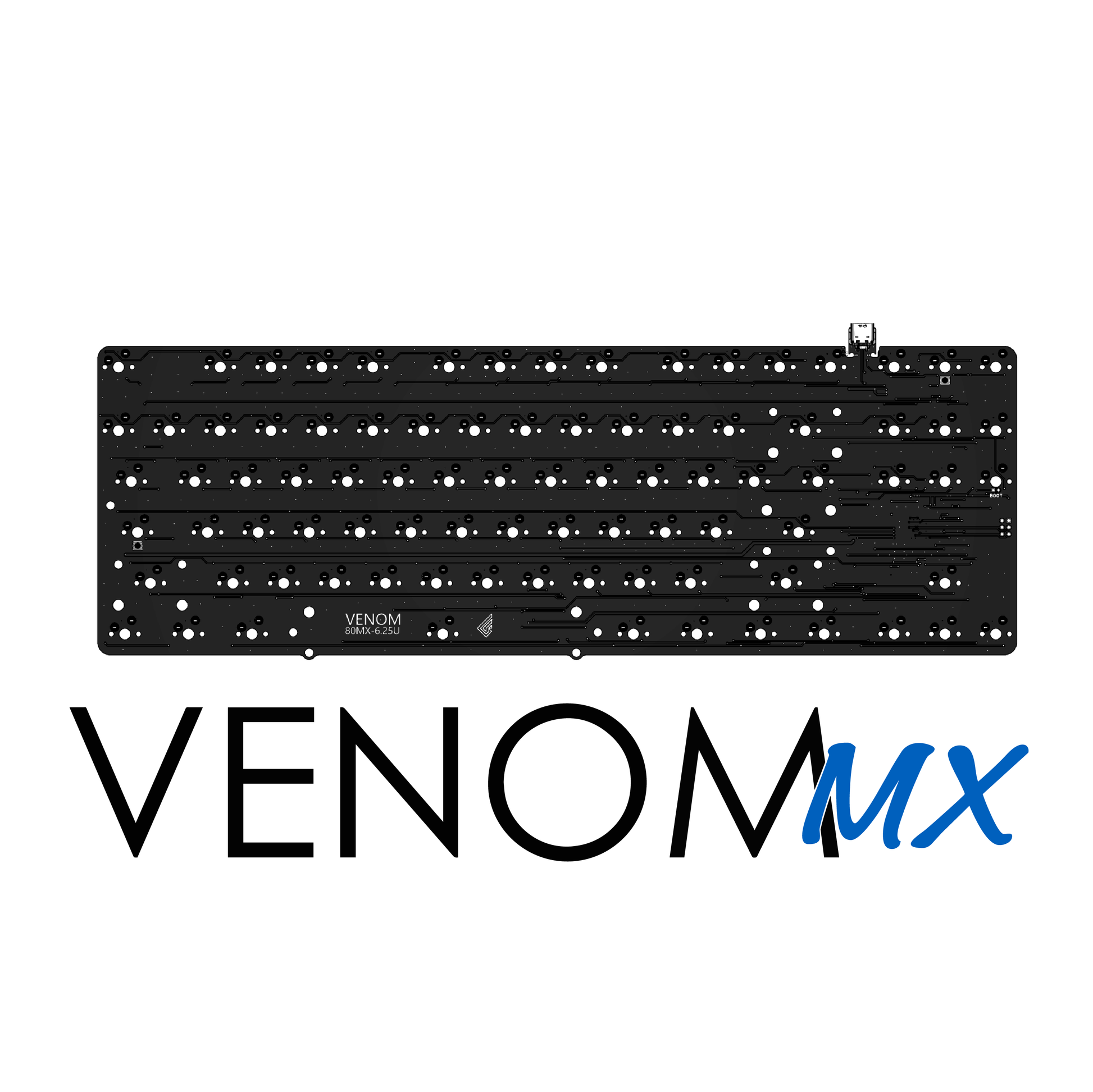

VENOM 80 MX Hotswap PCB

🟡 Compatibility Information

⚪ PCB Compatibility

• 80% TKL: Compatible with USB-C internal PCBs like H87c/Apollo87/Galatea87, and USB-C external (daughterboard) PCBs like H87nu.


⚪ Housing Compatibility

• 80% TKL: Compatible with housings like F1-8X (not F1-88), FROG TKL (not F13), F2-84 (7U), and all housings compatible with H87c/H87nu.


⚪ Plate Compatibility

• Can be used with compatible plates without a dedicated plate for general hotswap PCBs.



🔵 Specifications

• Ultra-low power STM32U5 MCU, high-speed matrix scan
• Supports VIA (LT/MT/LM/custom macros)
• 8KHz polling rate / 78KHz key scan rate / 0.13~0.14ms latency
• Caps Lock / Scroll Lock LED, no underglow/key RGB.




🔴 Important Notes

• This product is compatible with Cherry-based MX switches and not with magnetic HE switches.
• Daughterboards are sold separately. When removing the USB-C port for daughterboard use, please use tools like pliers.
• USB cables must be USB 2.0 High-Speed (HS) or higher, and USB 3.2 GEN1 SuperSpeed is recommended.



❤️ Firmware

• VENOM Guide



⌨ LAYOUTS

80 MX 6.25U

80 MX 7U
