Venom TKL HE RGB PCB

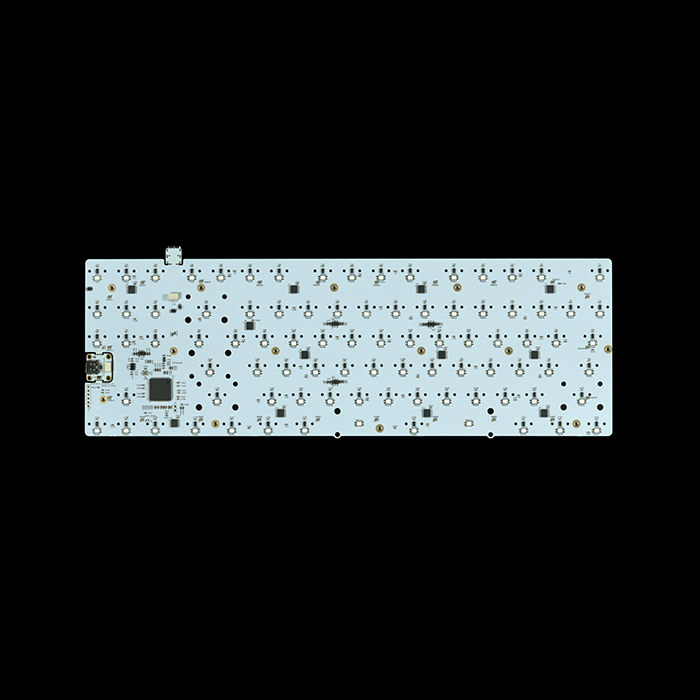

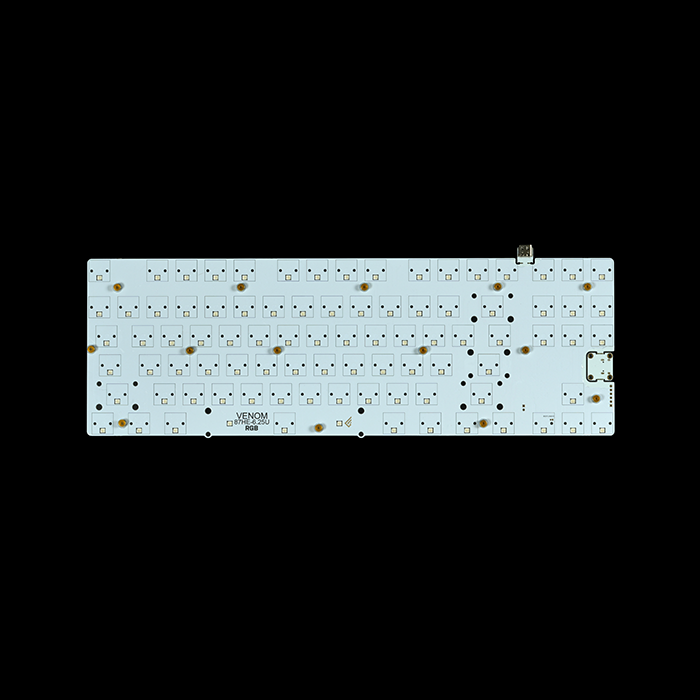

Venom HE H87 F12 RGB 6.25U PCB
Type : Hall effect
Material : FR4
Thickness : 1.6mm

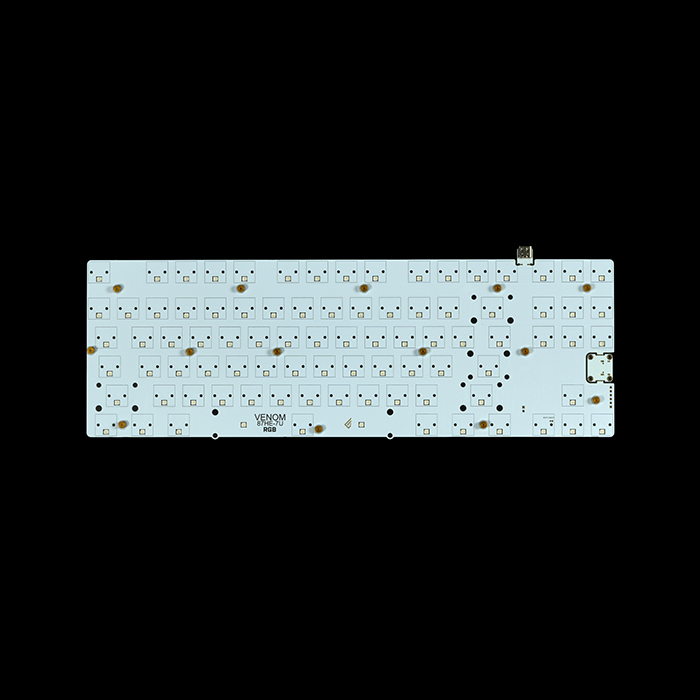

Venom HE H87 F12 RGB 7U PCB
Type : Hall effect
Material : FR4
Thickness : 1.6mm

To change key settings, refer to this page:
Key Setting

All products are made in the size of Hiney H87c/H87nu, which is the standard in the custom keyboard sector.
Before you start assembling the PCB, please carry out a PCB test and check if all keys function.
Before assembling the screws, remove the yellow tape on the stand-offs of PCBs.
Whether or not to use foam sets is optional.
Cut the space bar area of the foam set to fit your keyboard layout.
To assemble the PCB and the plate, you must use all 14 screws.
After removing the C-type port once, you cannot put it on again.
Remove the daughter board installed the PCB before use, since electricity may flow through.
Daughter board and C-type ports are made of FR-4, which means you must use a nipper. If you use tools made for other uses such as scissors, the product may be damaged.

These PCBs, such as photos, are not eligible for exchange or refund.

The stabilizer mounts normally.

For JST cables, you need to use a cable with the same pin layout on both ends.

Manufacturing country

Made in China
